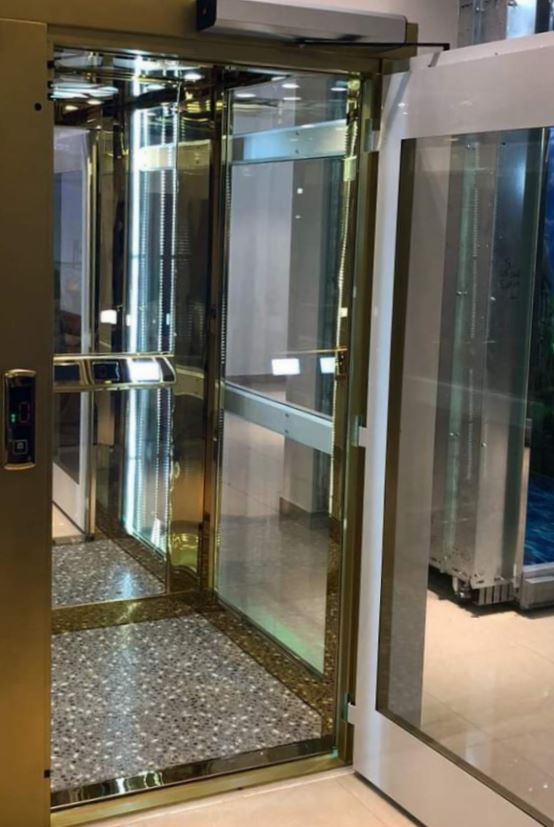

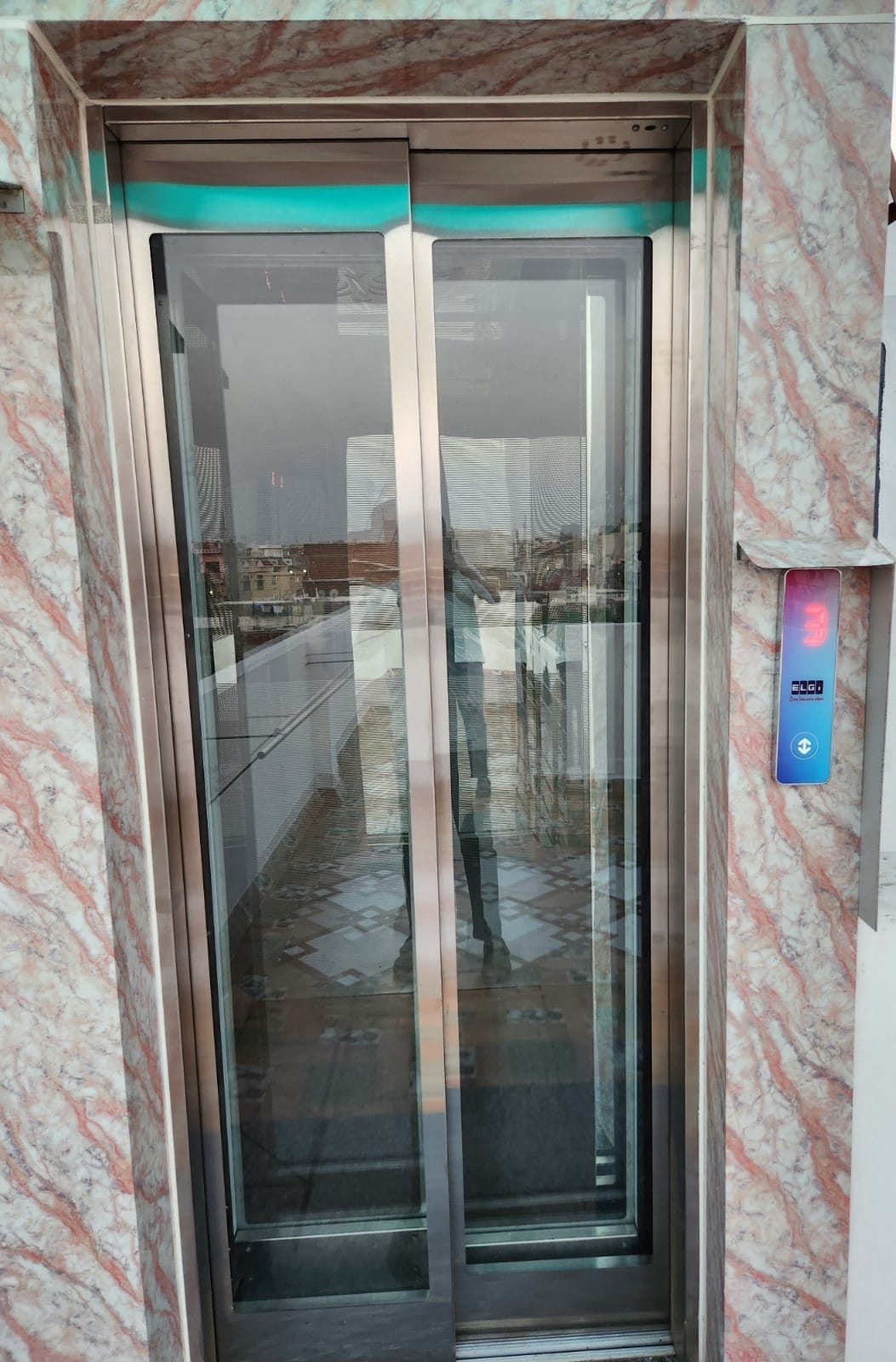

Our auto door elevators are durable by design and accurate by technology .we have a wide range of these elevators which are most reliable and designed to suit every construction requirement and provide best vertical transportation solutions, with trouble free performance and low maintenance cost .these elevators are a perfect blend of all good features of various type of elevators. These have excellent record of customer satisfaction.
Owner Work
All Walls Minimum 150 Rcc Or 230 Brick (h'y. Front Wall 230 Bk. Preffered)
All Civil Work, Holes, Grouting Etc.
Reinforced Concrete Machine- Room Structural Floor Slab 150 Thick
Designed To Sustain Min. 1000 Kg./m2 U.d.l.
Rolled Steel Section Hoisting Beams, Machine Beams, Bearing Plates, Pit-ladder Etc.
Power Supply
440 Volts, 3 Phase, 4 Wires With Neutral 50 Hz & 230 Volts 1 Phase.
Two Earthing
Features
Capacity options from 04 to 26 passengers.
Speed options from 0.70m/sec to 1.5m/sec.
PVC/Chequered flooring.
Various type of door options such as Telescopic/automatic centre opening doors.
Car and door finish options — Golden, Glass /stainless steel.
Digital/LCD floor indication in LOP & COP.
Blower fan for multi- cross air delivery.

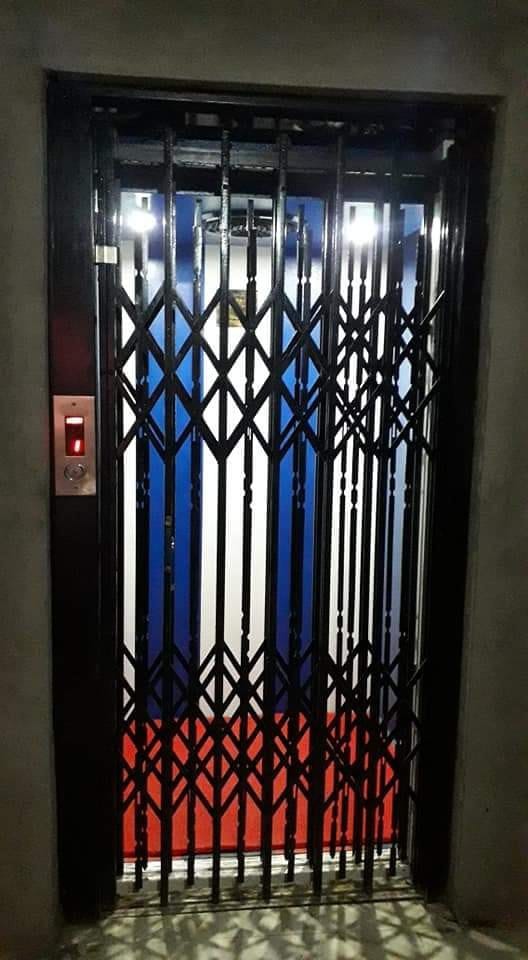

MANUAL DOOR ELEVATOR
Features
Capacity option from 04 to 26 passengers.
Speed option from 0.35m/sec to 1.5 m/sec PVC/Chequered flooring.
Various types of door option such as collapsible /imperforted /Telescopic /Swing Door.
Car and door finish option - Power coated /stainless steel Digital/LCD floor indication in LOP& COP.
Blower fan for multi-cross air delivery.
Full - Proof Gate Lock System Mechanical locking ensures locking for car position.
Electrical interlock ensures closed door lift operation and given audio signal for open door.
Owner Work
All Walls Minimum 150 Rcc Or 230 Brick (h'y. Front Wall 230 Bk. Preffered)
All Civil Work, Holes, Grouting Etc.
Reinforced Concrete Machine- Room Structural Floor Slab 150 Thick
Designed To Sustain Min. 1000 Kg./m2 U.d.l.
Rolled Steel Section Hoisting Beams, Machine Beams, Bearing Plates, Pit-ladder Etc.
Power Supply
440 Volts, 3 Phase, 4 Wires With Neutral 50 Hz & 230 Volts 1 Phase.
Two Earthing

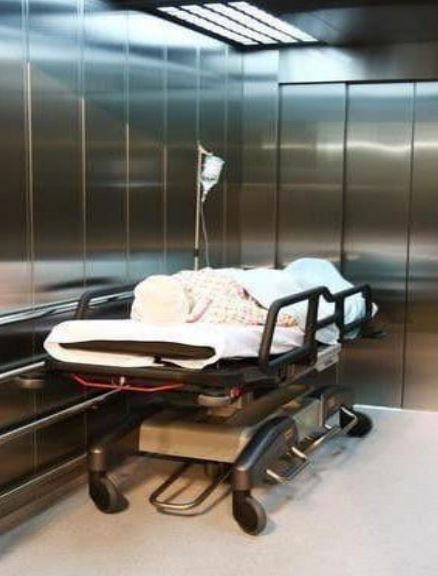

HOSPITAL ELEVATOR
Our Hospital elevators are used for simple transportation of a patient on wheel chair to wheeling away a critical patient on stretcher without disturbing the life support system with doctors and nurses. these elevators are smooth, silent and swift without jerks and shocks
Owner Work
All Walls Minimum 150 Rcc Or 230 Brick (h'y. Front Wall 230 Bk. Preffered)
All Civil Work, Holes, Grouting Etc.
Reinforced Concrete Machine- Room Structural Floor Slab 150 Thick
Designed To Sustain Min. 1000 Kg./m2 U.d.l.
Rolled Steel Section Hoisting Beams, Machine Beams, Bearing Plates, Pit-ladder Etc.
Power Supply:
440 Volts, 3 Phase, 4 Wires With Neutral 50 Hz & 230 Volts 1 Phase Two Earthing.
Features
Capacity option from 04 to 26 passengers.
Speed option from 0.35m/sec to 1.5 m/sec PVC/Chequered flooring.
Various types of door option such as collapsible /imperforted /Telescopic /Swing Door.
Car and door finish option - Power coated /stainless steel Digital/LCD floor indication in LOP& COP.
Blower fan for multi-cross air delivery.
Full - Proof Gate Lock System Mechanical locking ensures locking for car position.
Electrical interlock ensures closed door lift operation and given audio signal for open door.
HYDROLIC ELEVATOR
Looking for a low-maintenance elevator? Hydraulic lifts provide the advantages of being relatively in expensive, safe and easy to maintain. They're very convenient and cost-effective solution for low-rise building with low traffic. Hydraulic elevators have been rated the safest option for home elevators. They boast superb use friendliness and easy access machine room located at the basement. Once they are put in place, hydraulic elevators provide the smoothest rides possible.
Types of Suspension
Side indirect acting suspension with wire ropes with one piston for regular loads and long travels.
Direct suspension. The simplest solution for any load with a simple or split piston.
Side direct suspension with two simple piston for large loads and short travels. (Max. Travel 10mt.)
It is directly suspension with a simple or split piston. It is the simplest solution of suspension for any load. upto 6 meters travel

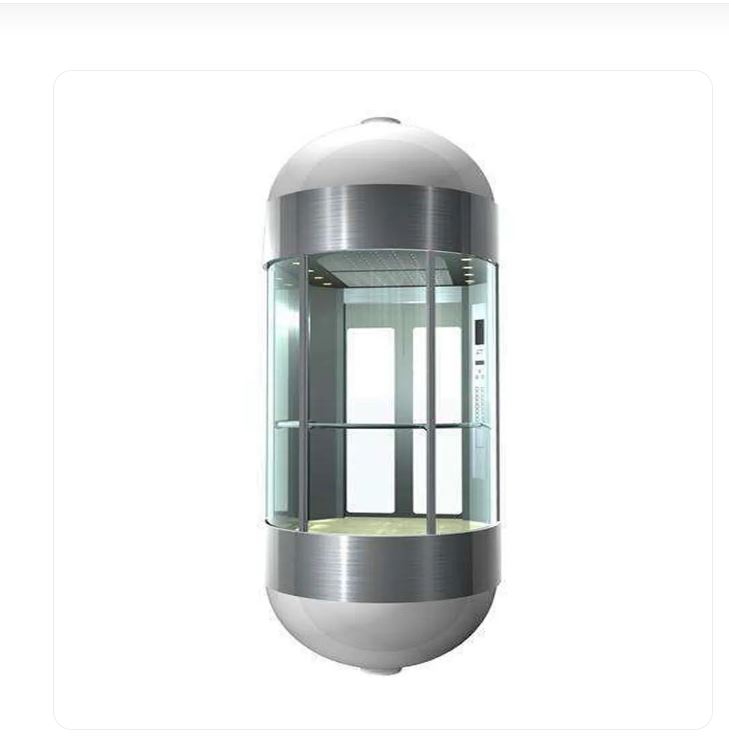

CAPSULE ELEVATOR
Capsule Elevator is backed by the advance control technology, applying fully digital vector variable frequency drive technology and matching with the noble European decoration style .when the evening fails, in the background of the neon lights, up and down elevators becomes a flowing scenery in the urban city .at the same time. it wonderfully display the design concept of "safety, smoothness, attraction and harmony ".These types of elevators can be extensively used in shopping malls, high grade offices and other important public civil infrastructures.
Owner Work
All Walls Minimum 150 Rcc Or 230 Brick (h'y. Front Wall 230 Bk. Preffered)
All Civil Work, Holes, Grouting Etc.
Reinforced Concrete Machine- Room Structural Floor Slab 150 Thick
Designed To Sustain Min. 1000 Kg./m2 U.d.l.
Rolled Steel Section Hoisting Beams, Machine Beams, Bearing Plates, Pit-ladder Etc.
Power Supply
440 Volts, 3 Phase, 4 Wires With Neutral 50 Hz & 230 Volts 1 Phase.
Two Earthing
Features
Glass/Stainless steel/designer stainless steel/ gold finish stainless steel.
Powder coated (multi-colour) cars and doors, elegant in looks, light in weight, and variable speed options.
Microprocessor based Control with full collective-selective control.
Automatic rescue device for power back up.
Digital/LCD Floor indication in LOP& COP.
Decorative LED Lights.
